NPT Thread EMT Conduit And Fittings And Steel Compression Connector
Description:

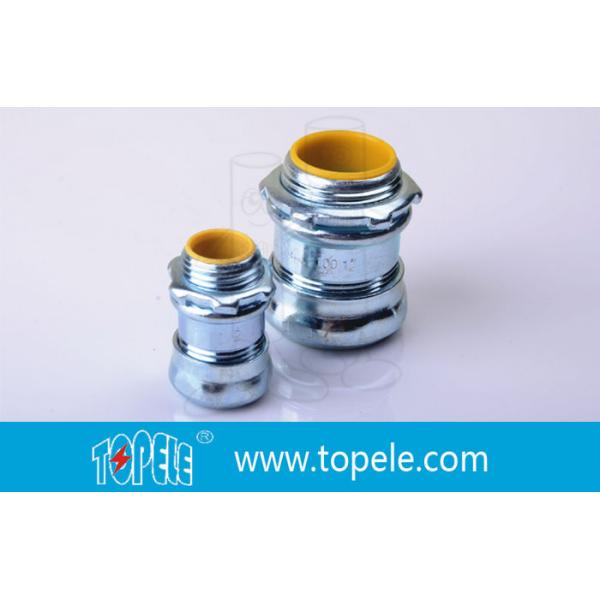

EMT Steel Compression Connector
TOPELE steel compression connectors are used to ground andsecure EMT raceways to boxes and enclosures. TOPELE EMT steel connectors provide concrete tight connections when taped and properly secured with the included locknut, and are rated for electrical applications above 600 volts. Their heavy gauge steel construction maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure. Additionally, EMT compression connectors are pure steel and with zinc-plated surface for excellent corrosion protection.
Features:
Male hub threads-NPT
Available with insulated threat
Concretetight
Insulated throat connnector rated 90 degree
Materila/ Finish: Body and nut made from steel, Steel / Zinc plated
Applications:
EMT compression connector: Joins steel EMT conduit to Electrical box and enclosure
•Connect & effectively bond EMT conduit to steel outlet boxes, load centers & other metal enclosures
•in concrete-tight applications when taped
•Body and locknut made from steel and with zinc-plated surface
•Reversible locknut designed to cut through protective coatings on boxes & enclosures
•Application type : EMT
•Electrical Product Type : Standard Fitting
•Fitting type : Connector
•Indoor/Outdoor : Indoor/outdoor
•Paintable/Stainable : No
•Trade Size (in.) : [1/2"] [3/4"] [1"] [1-1/4"] [1-1/2"] [2"][2-1/2"] [3"] [4"]
Certifications and Compliances
CSA standard: C22.2 No. 18.3
NEMA: FB-1
Specifications:
| CCN-50S | 1/2" |
| CCN-75S | 3/4" |
| CCN-100S | 1" |
| CCN-125S | 1-1/4" |
| CCN-150S | 1-1/2" |
| CCN-200S | 2" |
| CCN-250S | 2-1/2" |
| CCN-300S | 3" |
| CCN-400S | 4" |
Competitive Advantage:
+Quick Delivery: within 30 days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
