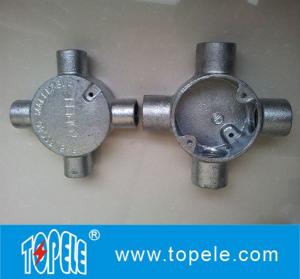

BS4568 Four Way Intersection Circular Junction Box Malleable Iron Electrical Junction Boxes
Description:
TOPELE BS4568 Malleable Iron Junction Box-Intersection
BS4568 Malleable iron Junction Box-Intersection
Marking: TOPELE
Material: Malleable Iron
Finish: Hot-dip Galvanized, Black
Standard: BS4568/BS31
Size: 20mm, 25mm, 3/4”, 1”
60.3mm Internal Diameter x 25.4mm Deep Tapped M4 in mm sizes and 2BA in imperial sizes of 50.3mm with tapped hole in base for earthing screw.
Note:
1.With tapped hole in base for earthing screw.
2.Supplied without covers or fixing screws unless ordered.
3.Order 3/4" & 1" when using with BS31 Conduits.
4.Order 20mm,25mm when using with BS4568 Conduits.
5.BS31 boxes also available in cast Iron & finish galvanized coating.
6.Box Covers are available 1.0/1.2mm thickness, finish Hot-Dipped Galvanized;
7.Each box is supplied C/W one regulation Tap Earth Terminal Hole in base;
8.Small and large Circular Boxes available;
9.Deep pattern Boxes available;
10.Full range of Conduit Fittings(Saddles) available to suit different site needs;
11.Good range of other supporting Conduit Fittings available.
Other Junction Boxes:
One way-terminal. Two way-Angle, Two way-U Shape. Two way-Through, Three way-Tee, Three way-Y Shape, Four Way-Intersection, Four Way-H shape Junction Boxes available
Applications:
TOPELE BS4568 Malleable Iron Junction Box-Intersection
to protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system change.
Specifications:
TOPELE BS4568 Malleable Iron Junction Box-Intersection
BS4568 Malleable iron Junction Box
Marking: TOPELE
Material: Malleable Iron
Finish: Hot-dip Galvanized, Black
Standard: BS4568/BS31
Size: 20mm, 25mm, 3/4”, 1”
Competitive Advantage:
TOPELE BS4568 Malleable Iron Junction Box-Intersection
+Quick Delivery: 30days for one 20ft container.
+Competitive Price
+ Good Quality:
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
